| Pos | TYPE | MODEL | FUNCTION | PARTNO. |
|---|---|---|---|---|

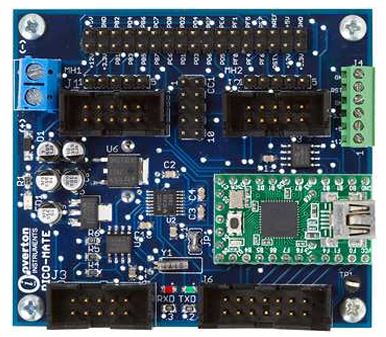

| 1 | Embedded Test Controller | PICO-MATE | Embedded Test Controller based on a high-performance Atmel AVR processor, 2K of SRAM and 32K of Flash ROM, 65K EEPROM, 25 Digital I/O lines, a high-speed serial RS232 communications port and a flexible USB interface | ETS-1010-00 |

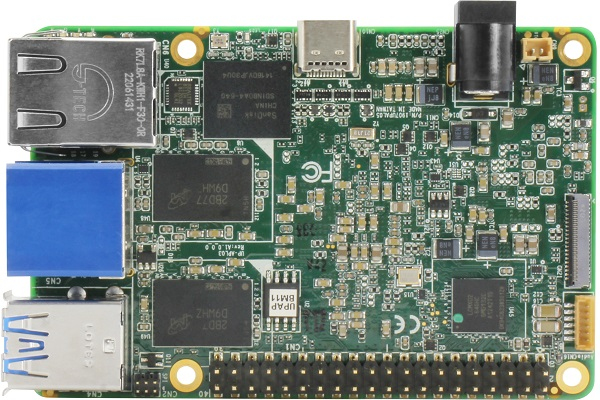

| 2 | Embedded Test Controller | UP-MATE-II | UP-MATE-II, Embedded Test Controller, the UP4000 board, Intel Pentium N4200, 8GB RAM, 64GB eMMC, Rev A1.0 with Windows 10 OS | STF-0002-000 |
| 3 | Embedded Test Controller | Rasbberry Pi | Raspberry Pi 4 Model B (8 GB DDR4) | Rasbberry Pi |
| 4 | Analog Conversion | DAQ-MATE | DAQ-MATE(mm) 8-Ch Data Acquisition Module | SBS-1020-00 |
| 5 | Digital I/O | DIO-MATE | 8-Bit DIO Module | SBS-1030-00 |
| 6 | Digital I/O | OPTO-MATE | 4-Bit (2 Input/2 Output) Opto-Isolated Module | SBS-1190-00 |
| 7 | Digital I/O | DIO-MATE | 8-Bit DIO Module, Programmable Level Shift | SBS-1220-00 |
| 8 | Analog Conversion | QDM-MATE | DDM-MATE(mm) Dual Channel DAC Module | SBS-1320-00 |

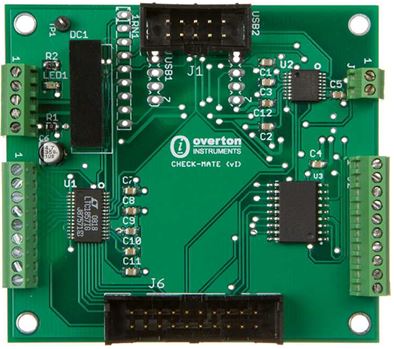

| 9 | Analog Conversion | CHECK-MATE | Multifunction DAQ Module (Serial) | ETS-2010-00 |
| 10 | Analog Conversion | CHECK-MATE | Multifunction DAQ Module (USB) | ETS-2011-00 |

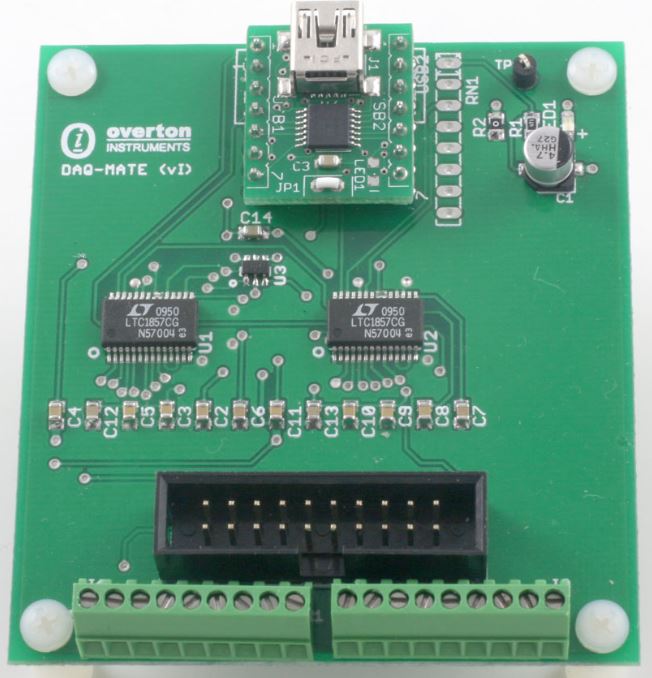

| 11 | Analog Conversion | DAQ-MATE | 16-Ch Data Acquisition Module (Serial) | ETS-2020-00 |
| 12 | Analog Conversion | DAQ-MATE | 16-Ch Data Acquisition Module (USB) | ETS-2021-00 |
| 13 | Analog Conversion | QDM-MATE | Quad DAC Module | ETS-2040-00 |
| 14 | Analog Conversion | QDM-MATE | Quad DAC Module | ETS-2041-00 |
| 15 | Analog Conversion | CHECK-MATE+ | Multifunction DAQ Module, Plus (Serial) | ETS-2050-00 |
| 16 | Analog Conversion | CHECK-MATE+ | Multifunction DAQ Module, Plus (USB) | ETS-2051-00 |
| 17 | Analog Conversion | CHECK-MATEII | Multifunction DAQ Module-II (Serial) | ETS-2060-00 |
| 18 | Analog Conversion | CHECK-MATEII | Multifunction DAQ Module-II (USB) | ETS-2061-00 |

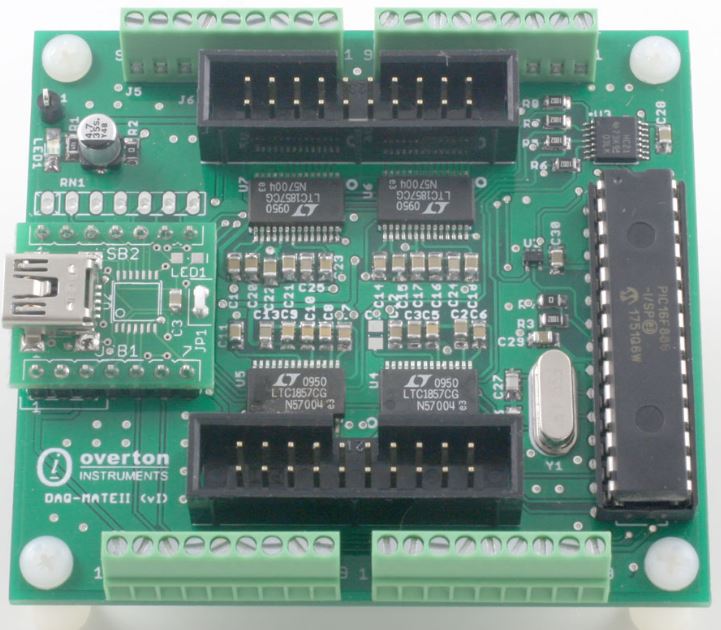

| 19 | Analog Conversion | DAQ-MATEII | 32-Ch Data Acquisition Module-II (Serial) | ETS-2070-00 |
| 20 | Analog Conversion | DAQ-MATEII | 32-Ch Data Acquisition Module-II (USB) | ETS-2071-00 |
| 21 | Digital I/O | DIO-MATE | 24-Bit Digital I/O Module (Serial) | ETS-3010-00 |
| 22 | Digital I/O | DIO-MATE | 16-Bit Digital I/O Module TTL | ETS-3013-00 |
| 23 | Digital I/O | DIO-MATE | 24-Bit Digital I/O Module (USB) | ETS-3011-00 |
| 24 | Digital I/O | DIO-MATE | 16-Bit Digital I/O Module VLS Variable Level Shift | ETS-3015-00 |
| 25 | Digital I/O | DIO-MATE | 16-Bit Digital I/O Module Programmable Level Shift | ETS-3017-00 |
| 26 | Digital I/O | DIO-MATE64 | 64-Bit Digital I/O Module (USB) TTL | ETS-3019-00 |
| 27 | Digital I/O | OPTO-MATE | 16-Bit Isolated Digital I/O Module (Serial) | ETS-3020-00 |
| 28 | Digital I/O | OPTO-MATE | 16-Bit (8 Input/8 Output) Opto-Isolated Module (USB) | ETS-3021-00 |

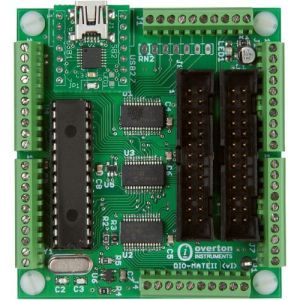

| 29 | Digital I/O | DIO-MATEII | 48-Bit Digital I/O Module-II (Serial) | ETS-3030-00 |
| 30 | Digital I/O | DIO-MATE32 | 32-Bit Digital I/O Module-II (USB) TTL | ETS-3031-00 |
| 31 | Digital I/O | DIO-MATE32 | 32-Bit DIO Module, Variable Level Shift | ETS-3033-00 |
| 32 | Digital I/O | DIO-MATE32 | 32-Bit DIO Module, Programmable Level Shift | ETS-3035-00 |
| 33 | Digital I/O | DIO-MATE64 | 64-Bit DIO Module, Variable Level Shift | ETS-3037-00 |
| 34 | Digital I/O | DIO-MATE64 | 64-Bit DIO Module, Programmable Level Shift | ETS-3039-00 |
| 35 | Digital I/O | OPTO-MATE | 16-Bit (16 Inputs) Opto-Isolated Module | ETS-3051-00 |
| 36 | Digital I/O | OPTO-MATE | 16-Bit (16 Outputs) Opto-Isolated Module | ETS-3061-00 |
| 37 | Driver Module | LDM-MATE | 8-CH Load Driver Module, 5V@250mA | ETS-3071-00 |
| 38 | Driver Module | LDM-MATE | 8-CH Load Driver Module, 60V@1.1A | ETS-3081-00 |

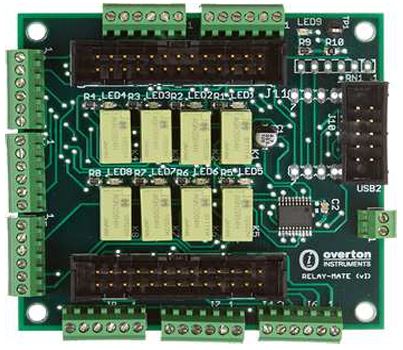

| 39 | Switching Solutions | RELAY-MATE | 8-DPDT Relay Module (Serial) | ETS-4010-00 |
| 40 | Switching Solutions | RELAY-MATE | 8-DPDT Relay Module (USB) | ETS-4011-00 |

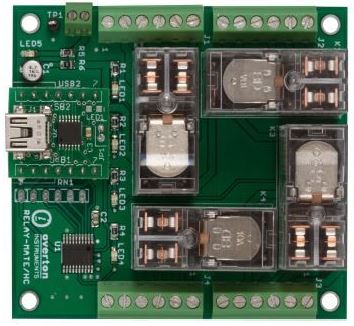

| 41 | Switching Solutions | RELAY-MATE/HC | 4-DPST High Current Relay Module (Serial) | ETS-4020-00 |
| 42 | Switching Solutions | RELAY-MATE/HC | 4-DPST High Current Relay Module (USB) | ETS-4021-00 |
| 43 | Switching Solutions | RELAY-MATE/HP | 8-DPDT High Performance Relay Module (Serial) | ETS-4030-00 |
| 44 | Switching Solutions | RELAY-MATE/HP | 8-DPDT High Performance Relay Module (USB) | ETS-4031-00 |

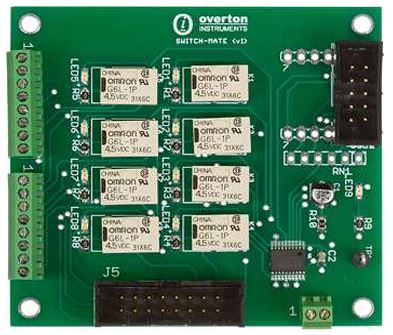

| 45 | Switching Solutions | SWITCH-MATE | 8-SPST Relay Module (Serial) | ETS-4110-00 |
| 46 | Switching Solutions | SWITCH-MATE | 8-SPST Relay Module (USB) | ETS-4111-00 |

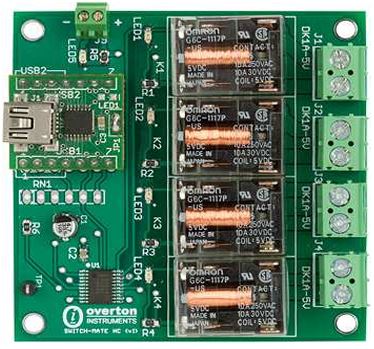

| 47 | Switching Solutions | SWITCH-MATE/HC | 4-SPST, High Current Relay Module (Serial) | ETS-4120-00 |
| 48 | Switching Solutions | SWITCH-MATE/HC | 4-SPST, High Current Relay Module (USB) | ETS-4121-00 |

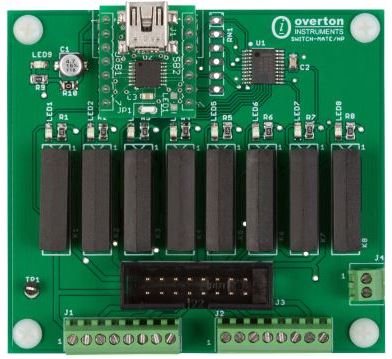

| 49 | Switching Solutions | SWITCH-MATE/HP | 8-SPST High Performance Relay Module (Serial) | ETS-4130-00 |
| 50 | Switching Solutions | SWITCH-MATE/HP | 8-SPST High Performance Relay Module (USB) | ETS-4131-00 |
| 51 | Switching Solutions | SWITCH-MATE/SSR | 8-CH, Solid State Relay, 60V@1A | ETS-4181-00 |
| 52 | Switching Solutions | SWITCH-MATE/SSR | 16-CH, Solid State Relay, 60V@1A | ETS-4183-00 |
| 53 | Switching Solutions | SWITCH-MATE/SSR | 4-CH, Solid State Relay, 60V@10A | ETS-4185-00 |

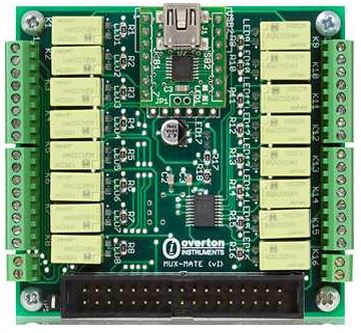

| 54 | Switching Solutions | MUX-MATE | 16-Ch Signal Multiplexer Module (Serial) | ETS-4210-00 |
| 55 | Switching Solutions | MUX-MATE | 16-Ch Signal Multiplexer Module (USB) | ETS-4211-00 |

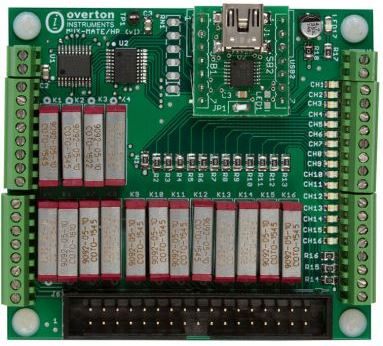

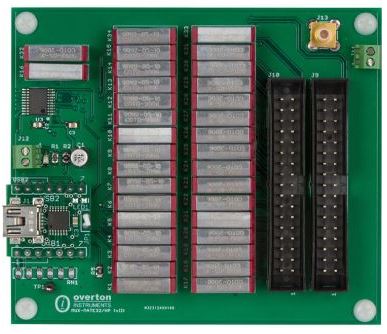

| 56 | Switching Solutions | MUX-MATE/HP | 16-Ch High Performance Signal Multi- plexer Module (Serial) | ETS-4220-00 |
| 57 | Switching Solutions | MUX-MATE/HP | 16-Ch High Performance Signal Multi- plexer Module (USB) | ETS-4221-00 |
| 58 | Switching Solutions | MATRIX-MATE | 4X4 Relay Matrix Module (Serial) | ETS-4310-00 |
| 59 | Switching Solutions | MATRIX-MATE | 4X4 Relay Matrix Module (USB) | ETS-4311-00 |
| 60 | Switching Solutions | 4WIRE-MATE | 8-CH 4PST Matrix Module (Serial) | ETS-4410-00 |
| 61 | Switching Solutions | 4WIRE-MATE | 8-CH 4PST Matrix Module (USB) | ETS-4411-00 |
| 62 | Signal Generator & Measurement | FCM-MATE | 100MHz Frequency Counter Module (Serial) | ETS-5010-00 |
| 63 | Signal Generator & Measurement | FCM-MATE | 100MHz Frequency Counter Module (USB) | ETS-5011-00 |
| 64 | Signal Generator & Measurement | PGM-MATE | 10MHz Pulse Generator Module (Serial) | ETS-5110-00 |
| 65 | Signal Generator & Measurement | PGM-MATE | 10MHz Pulse Generator Module (USB) | ETS-5111-00 |
| 66 | Signal Generator & Measurement | PWG-MATE | 25MHz Programmable Waveform Gen- erator Module (Serial) | ETS-5120-00 |
| 67 | Signal Generator & Measurement | PWG-MATE | 25MHz Programmable Waveform Gen- erator Module (USB) | ETS-5121-00 |
| 68 | Signal Generator & Measurement | PIT-MATE | 10MHz Programmable Interval Timer Module (Serial) | ETS-5130-00 |
| 69 | Signal Generator & Measurement | PIT-MATE | 10MHz Programmable Interval Timer Module (USB) | ETS-5131-00 |

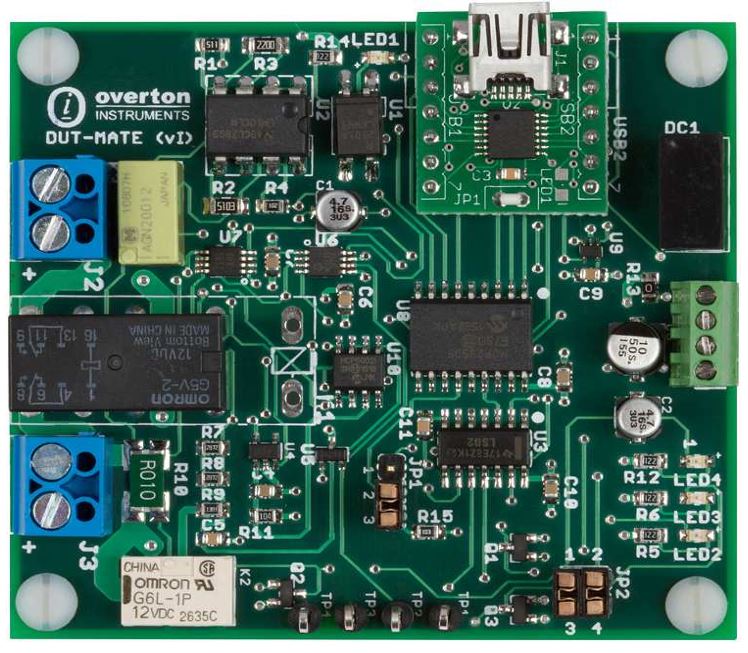

| 70 | Special Function | DUT-MATE | Device-Under-Test Power Sequence Module, 1Amp (Serial) | ETS-6010-00 |
| 71 | Special Function | DUT-MATE | Device-Under-Test Power Sequence Module, 1Amp (USB) | ETS-6011-00 |
| 72 | Special Function | DUT-MATE | Device-Under-Test Power Sequence Module, 5Amp (Serial) | ETS-6020-00 |
| 73 | Special Function | DUT-MATE | Device-Under-Test Power Sequence Module, 5Amp (USB) | ETS-6021-00 |
| 74 | Special Function | DUT-MATE | Device-Under-Test Power Sequence Module, 10Amp (Serial) | ETS-6030-00 |
| 75 | Special Function | DUT-MATE | Device-Under-Test Power Sequence Module, 10Amp (USB) | ETS-6031-00 |
| 76 | Special Function | TCI-MATE | Test Control Interface Module | ETS-6100-00 |
| 77 | Special Function | CIA-MATE | Controller Interface Adaptor Module | ETS-6110-00 |
| 78 | Special Function | PLM-MATE | Programmable Load Module (Serial) (UNDER RE-DESIGN) | ETS-6130-00 |
| 79 | Special Function | PLM-MATE | Programmable Load Module (USB) (UNDER RE-DESIGN) | ETS-6131-00 |

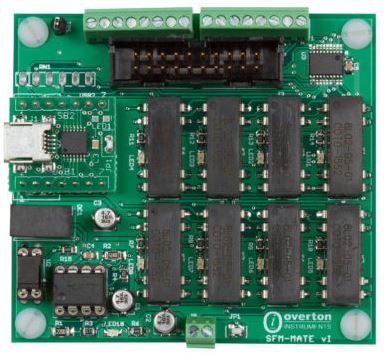

| 80 | Special Function | SFM-MATE | 8-CH Short-Finder Module (Serial) | ETS-6160-00 |
| 81 | Special Function | SFM-MATE | 8-CH Short-Finder Module (USB) | ETS-6161-00 |

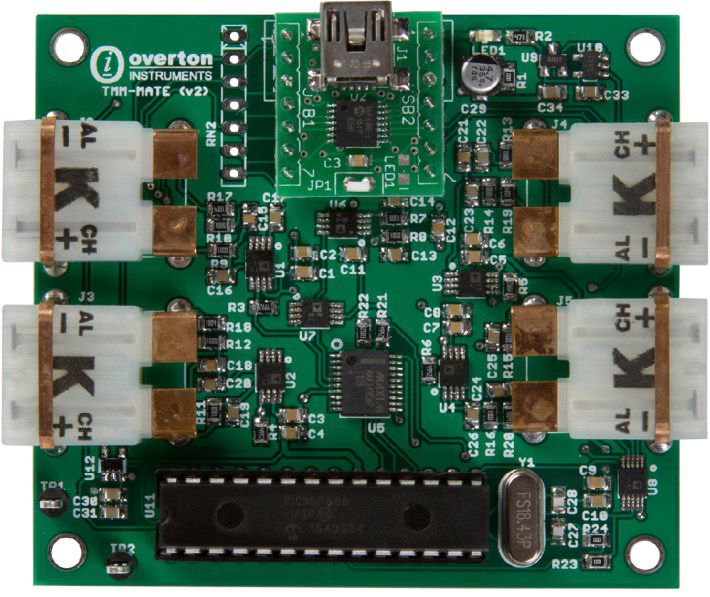

| 82 | Special Function | TMM-MATE | 4-CH Temperature Measurement Module (Serial) | ETS-6210-00 |
| 83 | Special Function | TMM-MATE | 4-CH Temperature Measurement Module (USB) | ETS-6211-00 |
| 84 | Special Function | TMM-MATE | 2-CH Temperature Measurement Module (Serial) | ETS-6220-00 |
| 85 | Special Function | TMM-MATE | 2-CH Temperature Measurement Module (USB) | ETS-6221-00 |
| 86 | Special Function | SEM-MATE | Switching Expansion Module | ETS-4510-00 |
| 87 | Special Function | SEM-MATE | Switching Expansion Module | ETS-4511-00 |
| 88 | Special Function | ATM-MATE | ATM-MATE(mm), Ambient Temperature Module/w USB interface | SBS-1000-00 |
| 89 | Special Function | FID-MATE | FID-MATE(mm), Fixture ID Module/w USB interface | SBS-1260-00 |
| 90 | Data Communications | COM-MATE | Quad Port RS-232 Module | ETS-7010-00 |
| 91 | Data Communications | COM-MATE | Dual Port RS-232 Module | ETS-7020-00 |
| 92 | Data Communications | HUB-MATE | 7-Port USB 2.0 HUB Module | ETS-7120-00 |
| 93 | Data Communications | HUB-MATE | 4-Port USB 2.0 HUB Module | ETS-7110-00 |
| 94 | Data Communications | COM-MATE | Quad USB/RS232 COM Module (Isolated) | ETS-7030-00 |
| 95 | Data Communications | COM-MATE | USB/RS232 COM Module | SBS-1070-00 |
| 96 | Data Communications | COM-MATE | USB/RS232 COM Module (VLS) Varable level Shift, Isolated | SBS-1180-00 |
| 97 | Data Communications | COM-MATE | USB/RS232 COM Module (Isolated) | SBS-1330-00 |
| 98 | Data Communications | COM-MATE | Dual Port USB/RS232 COM Module | SBS-1340-00 |
| 99 | Data Communications | COM-MATE | Dual Port USB/RS232 COM Module (VLS) | SBS-1350-00 |
| 100 | Data Communications | COM-MATE | USB/RS422 COM Module | SBS-1240-00 |
| 101 | Data Communications | COM-MATE | USB/RS485 COM Module | SBS-1170-00 |
| 102 | Data Communications | COM-MATE | Dual Port USB 2.0 Hub Module | SBS-1360-00 |
| 103 | Data Communications | UHM-MATE | Quad Port USB 2.0 Hub Module | ETS-7110-00 |
| 104 | Data Communications | UHM-MATE | Seven Port USB 2.0 Hub Module | ETS-7120-00 |
| 105 | Data Communications | UHM-MATE | Dual Port USB 2.0 Hub Module (Isolated) | ETS-7130-00 |
| 106 | Data Communications | UHM-MATE | Quad Port USB 2.0 Hub Module (Isolated) | ETS-7140-00 |
| 107 | Data Communications | UHM-MATE | Seven Port USB 2.0 Hub Module (Isolated) | ETS-7150-00 |
| 108 | Data Communications | GPIB-MATE | GPIB IEEE488 Module (Serial) | ETS-7210-00 |
| 109 | Data Communications | GPIB-MATE | GPIB IEEE488 Module (USB) | ETS-7211-00 |

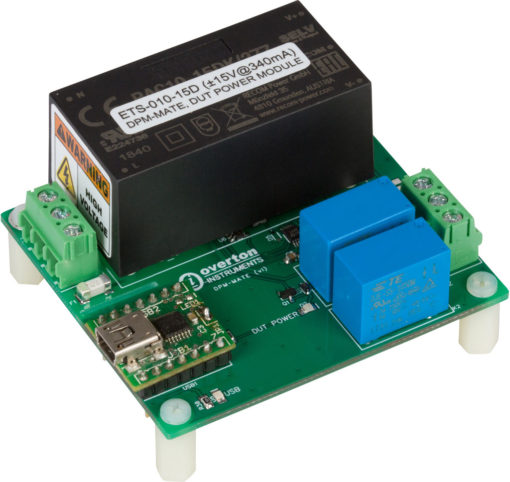

| 110 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/3.3V10W(vI) 3.3V@2.5A | ETS-010-03S |
| 111 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/5V10W(vI) 5V@2A | ETS-010-05S |
| 112 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/12V10W(vI) 12V@840mA | ETS-010-12S |
| 113 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/15V10W(vI) 15V@670mA | ETS-010-15S |
| 114 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/24V10W(vI) 24V@420mA | ETS-010-24S |
| 115 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/±12V10W(vI) ±12V@420mA | ETS-010-12D |
| 116 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/±15V10W(vI) ±15V@340mA | ETS-010-15D |
| 117 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/5V20W(vI) 5V@4A | ETS-020-05S |
| 118 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/12V20W(vI) 12V@1.670A | ETS-020-12S |
| 119 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/15V20W(vI) 15V@1.333A | ETS-020-15S |
| 120 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/24V20W(vI) 24V@840mA | ETS-020-24S |
| 121 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/48V20W(vI) 48V@420mA | ETS-020-48S |
| 122 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/±12V20W(vI) ±12V@833mA | ETS-020-12D |
| 123 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/±15V20W(vI) ±15V@670mA | ETS-020-15D |
| 124 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/5V30W(vII) 5V@6A | ETS-030-05S |
| 125 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/12V30W(vII) 12V@2.5A | ETS-030-12S |
| 126 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/15V30W(vII) 15V@2A | ETS-030-15S |
| 127 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/24V30W(vIII) 24V@1.250A | ETS-030-24S |
| 128 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/±12V30W(vII) ±12V@1.250A | ETS-030-12D |
| 129 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/±15V30W(vII) ±15V@1A | ETS-030-15D |
| 130 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/5V40W(vII) 5V@6A | ETS-040-05S |
| 131 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/12V40W(vII) 12V@3.334A | ETS-040-12S |
| 132 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/15V40W(vII) 15V@2.667A | ETS-040-15S |
| 133 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/24V40W(vII) 24V@1.667A | ETS-040-24S |
| 134 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/48V40W(vII) 48V@833mA | ETS-040-48S |
| 135 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/5V60W(vII) 5V@10A | ETS-060-05S |
| 136 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/12V60W(vII) 12V@5A | ETS-060-12S |
| 137 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/15V60W(vII) 15V@4A | ETS-060-15S |
| 138 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/24V60W(vII) 24V@2.5A | ETS-060-24S |
| 139 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/48V60W(vII) 48V@1.25A | ETS-060-48S |
| 140 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/12V90W(vII) 12V@6.700A | ETS-090-12S |
| 141 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/15V90W(vIII) 15V@5.670A | ETS-090-15S |
| 142 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/24V90W(vIII) 24V@3.750A | ETS-090-24S |
| 143 | Micro contr. AC/DC Power Brick | DPM-MATE | DPM-MATE/48V90W 48V@1.875A | ETS-090-48S |
| Pos | TYPE | MODEL | FUNCTION | PARTNO. |
Staat uw Module er niet bij?
Staat de juiste module voor uw project er niet bij, stuur ons een email met uw wensen.
Wij zullen u dan zo spoedig mogelijk contacteren met een mogelijke oplossing binnen het ETS programma of een alternatief.
