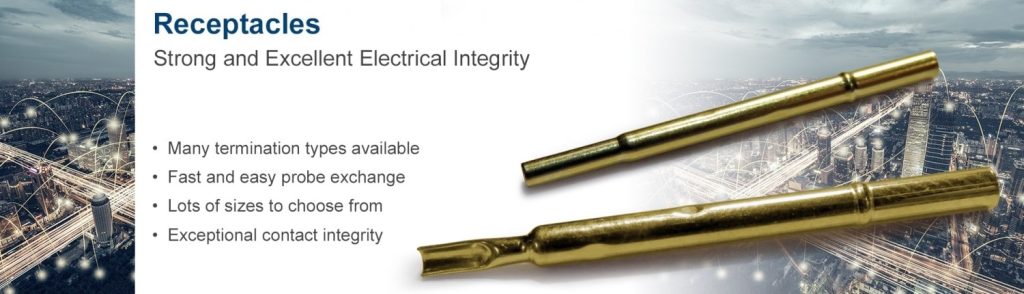

Er zijn verschillende Receptacles (Hulzen) beschikbaar om uit te kiezen, zoals crimp, solder cup, wire wrap en Fastite. Receptacles maken het wisselen van probes snel en eenvoudig, terwijl de bedrading intact blijft. Sommige stijlen zijn alleen beschikbaar in bepaalde maten. Raadpleeg de specifieke productpagina’s van de spring probe in de DFT Webshop om de beschikbare aansluitklemmen te bepalen.

Several receptacle termination styles are available to choose from such as crimp, solder cup, wire wrap, and Fastite. Receptacles make probe exchange fast and easy while ensuring wiring remains intact. Some styles are only available in certain sizes. Please reference the specific spring probe product pages within the DFT Webshop to determine available receptacles.

Available Receptacle Models and termination options.

Type -W  (Crimp Contact)

Typically used to attach a wire by mechanical crimping. This reliable connection is used primarily on smaller probe sizes in high-density applications where wire wrap is not available or in situations where probe plate thickness inhibits the use of wire wrapping. Push-on terminals can also be used and are commercially available from most connector manufacturers.

Type -W-1  (Solder Contact)

Typically used to attach a wire by soldering. This termination provides excellent electrical integrity for high-reliability applications. It is used primarily in low-density situations.

Type -W-2, -W-2L (Long), -W-2LL (Extra Long) (Wire Wrap Post)

These terminations are strong and provide excellent electrical integrity. It is the most common termination used in ATE fixturing.
Square post 0,64mm (.025″)
Vacuum leak rate not to exceed 1×10-4 CFM@15 psi

Type -W3  (Round Post for direct connector contact)

Round Post receptacles with 0,64mm (.025 inches) diameter posts are used with 2,54mm (.100 inches) center connectors and/or
ribbon cable assemblies for mass termination.
Vacuum leak rate not to exceed 1×10-4 CFM@15 psi

Type -W4 (Fastite connection)

Fastite or Quick Connect termination provides exceptional contact integrity and is available only on SMT receptacles. Connections can be made quickly and wiring mistakes can be corrected easily without damaging the receptacles.
Wire termination (30 AWG only)
Maximum wire insulation diameter = .019 (0.48)
Wire strip length = .125 (3.20)
DS-62-1 Insulation sleeve is included
Recommended maximum current 1.0A DC
Maximum temperature may not exceed 105°C

Type -W28 (Prewired)

Crimp with 30 inches of 28 AWG wire attached
Maximum temperature not to exceed 105°C
Recommended maximum current 1.5A DC

Type -W30 (Prewired)

Crimp with 30 inches of 30 AWG wire attached
Maximum temperature not to exceed 105°C
Recommended maximum current 1.0A DC
