Flasher Portable PLUS

Get Flasher Portable PLUS, the handheld Flash Programmer for on-chip and external flash memory and ARM7/9/11, Cortex-M/R/A, RX or PPC core.

Flasher Portable PLUS is designed for programming flash targets with the J-Flash software or stand-alone. Programming speed typically between 30 KB/second and 1 MByte/second. Max. programming speed highly depends on target hardware and max. programming speed of the flash itself.

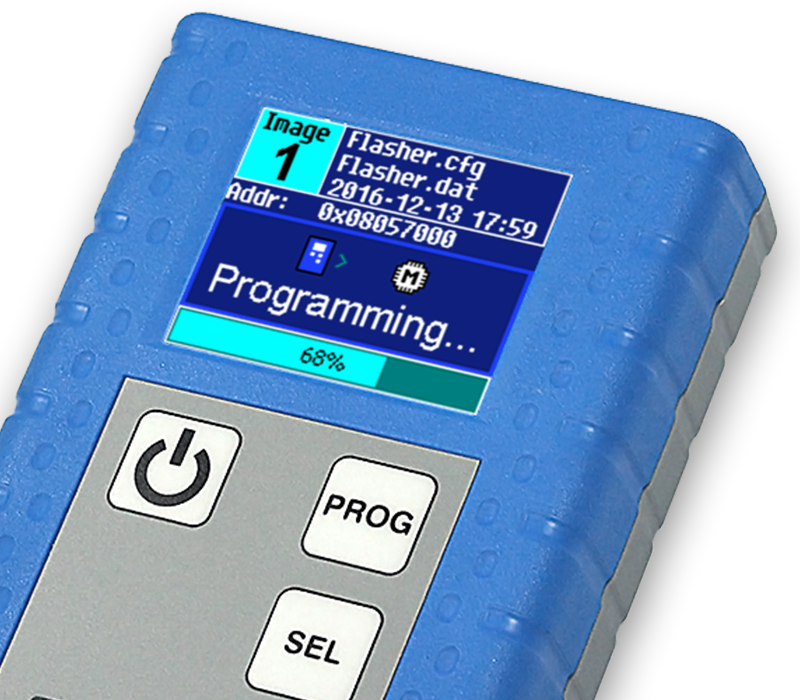

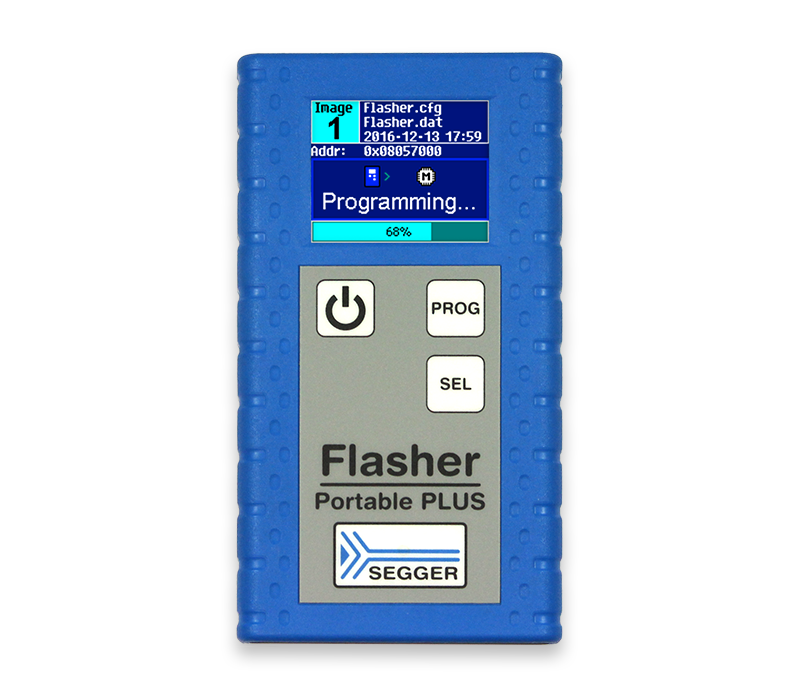

Powered by a rechargeable Li-Ion battery, Flasher Portable PLUS doesn’t need an external power source. One battery charge supports up to 10 hours of programming. Developers can also enjoy full insights with a 1.8 inch display.
Flasher Portable PLUS supports Authorized Flashing. This allows to limit the number of flash programming cycles and to protect the Flasher against non-authorized access in case of external production. The push button interface allows easy selection between multiple images/configurations stored on Flasher.

Further advantages
Flasher Portable PLUS supports a wide range of CPU cores and an even wider range of different devices from various vendors. This page provides an overview of all supported CPU cores as well as devices for which flash programming is supported.

Package content

• Flasher Portable PLUS
• 20-pin, 0.1″ ribbon cable
• USB cable

Includes free software updates and 1 (one) year of Basic support. Beyond that, SEGGER’s Extended Coverage gives you the option to extend hardware warranty and Basic support for one additional year (+12 months) or two additional years (+24 months). These options are only available at the time of purchase. Adding it at a later date is not possible.
