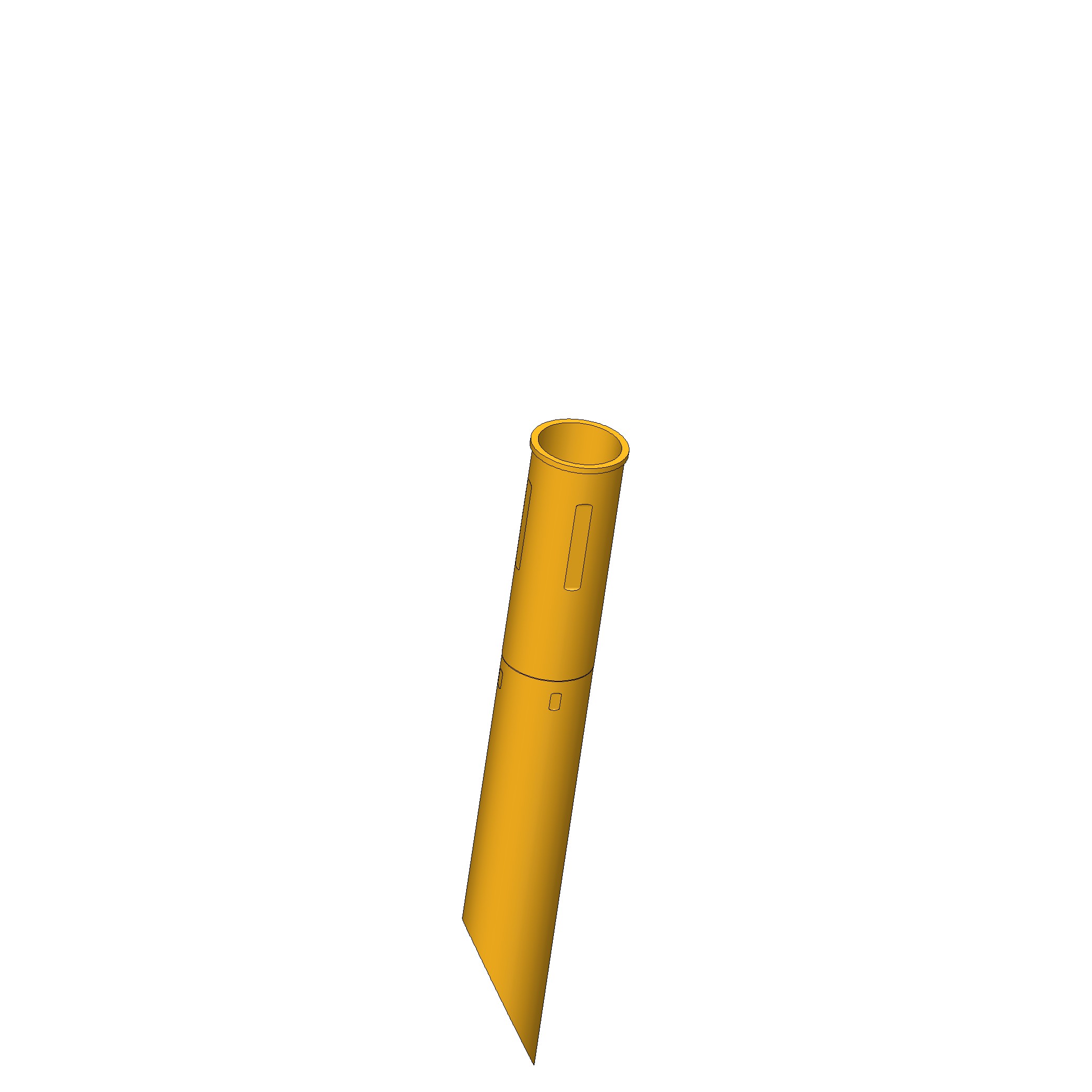

receptacle KS-11323
€ 0,50 Excl.
Beschikbaar via nabestelling
This Receptacle KS-113 23 is typically used in combination with our switch-probe model SKS-415 002 300 A 2310 E.
Beschrijving
| Product group : | Receptacles (KS) |
|---|---|
| Series : | KS-113 |
| Sub-series : | KS-113 23 press-in version |
| Type of receptacle connection : | Solder / open |
| Press ring : | No |
| Surface area : | Gold |
| Collar diameter : | 3.2Â mm |
| Collar height : | 0.2Â mm |
| Knurl : | No |
| Vacuum-tight : | No |
| RoHS-compliant : | RoHS-3;6c |
| Mounting hole in CEM1 : | 2.98 – 2.99 mm |
|---|---|
| Mounting hole in FR4 : | 2.98 – 2.99 mm |

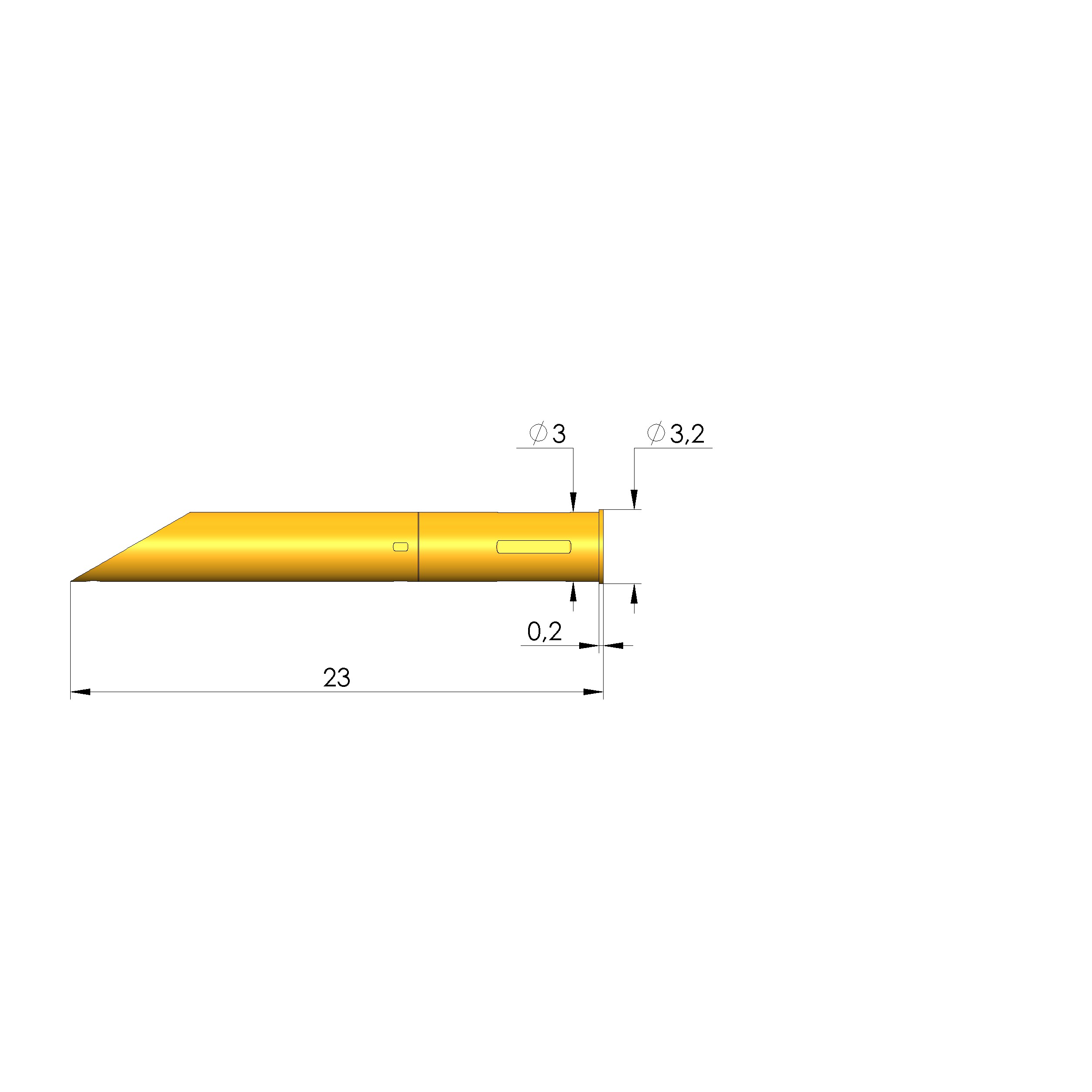

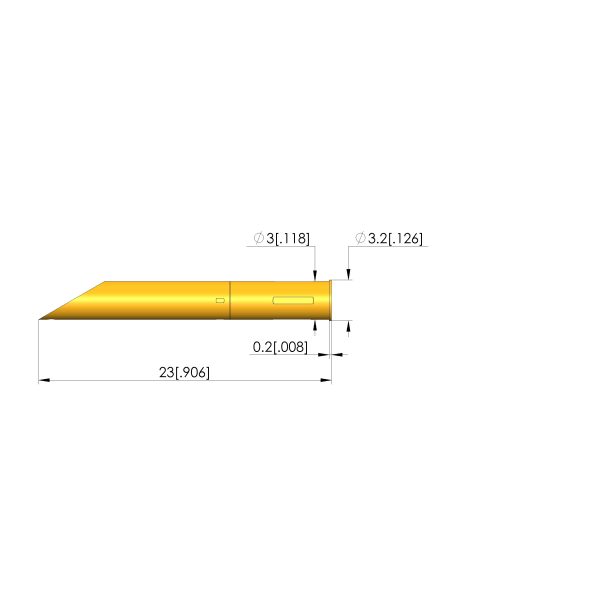

| Total length : | 23Â mm |
|---|---|
| Outer diameter : | 3Â mm |
