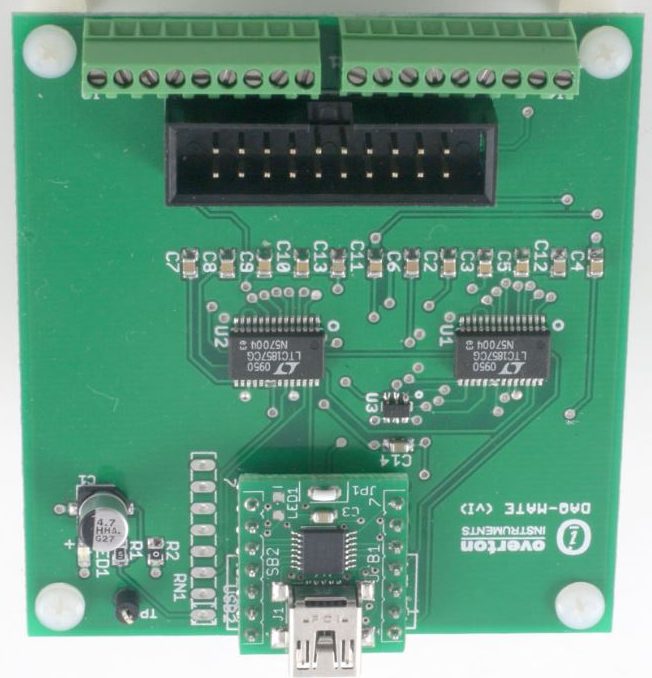

DAQ-Mate 16-CH DAQ Module.

Beschrijving

The DAQ-MATE offers an impressive 16-channels of analog data acquisition, including 12-bit resolution (and a sample rate of 100ksps). In addition each channel can be independently programmed for either single or differential-ended operation, and 4 different input ranges (0-5V, 0-10V, ±5 and ±10V).
Many test solutions can be quickly built by connecting the DAQ-MATE to a PC laptop or desktop, and then running our GUI software. No external power source is required, since power is supplied through the USB interface. Easy access to the hardware is made available through a convenient collection of screw terminal connectors.
There are two options for controlling the DAQ-MATE (with a Host PC or embedded microcontroller). In the case of the PC, the DAQ-MATE is connected by a USB interface and responds to a simple set of ASCII commands. Programming is easy using Visual BASIC, C/C++, LabView, LabWindows or any language that allows access to through a serial port. For embedded operation, the DAQ-MATE uses a standard (Oi) interface to allow external control by most popular microcontrollers (i.e., ARM, PIC, Atmel or STAMP).
Try combining the DAQ-MATE with other (Oi) test instruments (such as the DUT-MATE ‘power sequence module’ or the Relay-MATE ‘signal switching module’ and others). Use our ETS Series products to build unlimited test solutions quickly, confidently and affordably.

Part                           # Name
ETS-2020-00          DAQ-MATE 16-Ch Data Acquisition Module
ETS-2021-00          DAQ-MATE 16-Ch Data Acquisition Module, USB Interface Module
