ECT Probe CSP-40A-015
€ 158,45 Excl.
2 op voorraad (kan nabesteld worden)
- Replaceable Probe Remark: Singal Probe, HPA-40G
- Area of use, to contact a standard SMP connector.
Beschrijving
| Electrical | Bandwidth @ -1dB (GHz): 6.00 Return Loss @ -20dB (GHz): 2.30 Nominal Impedance (Ohms): 50 Dielectric VTE Rating (k VAC): 1 |
||
|---|---|---|---|
| Materials & Finishes | Dielectric Material: Teflon Housing Material: Brass, Gold plated |
||
| Spring Material |
|
||

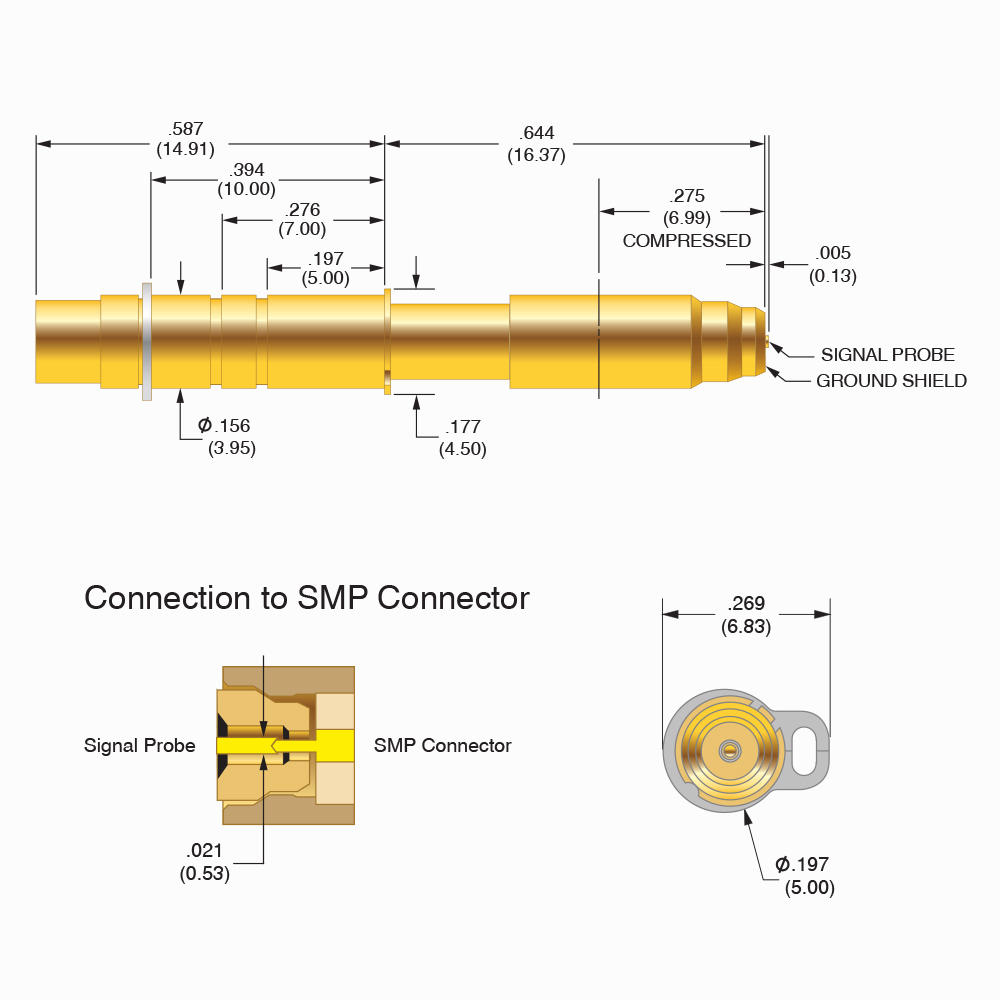

| Mechanical | Test Center (mil): 250 Test Center (mm): 6.35 Full Travel (mil): 200 Full Travel (mm): 5.08 Recommended Travel (mil): 133 Recommended Travel Remark: Shield: 211 (5.36) including travel of probes Overall Length (mil): 1,231 Overall Length (mm): 31.28 Full Travel Remark: Shield: 275 (6.99) including travel of probes |
||
| RF Connector Mates | DUT Mate: SMP Instrument Mate: MMCX |
||
| Thermal | Min Operating Temp (°C): -35 Max Operating Temp (°C): 155 |
