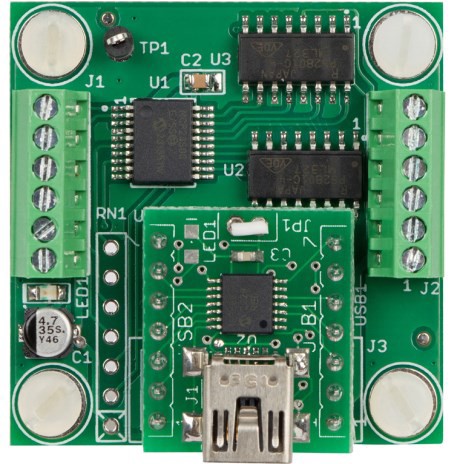

SBS-1260-00 Fixture ID module
€ 53,90 Excl.
Beschikbaar via nabestelling
De SBS-1260-00 wordt gebruikt in een test fixture en ondersteund de meest gebruikte I/O functies voor een ATE. (Automatic Test Equipment)
Input voor knoppen en switches en LED outputs.
Download hier aanvullende informatie.
1) Algemene informatie
2) Quick Start Guide
Beschrijving

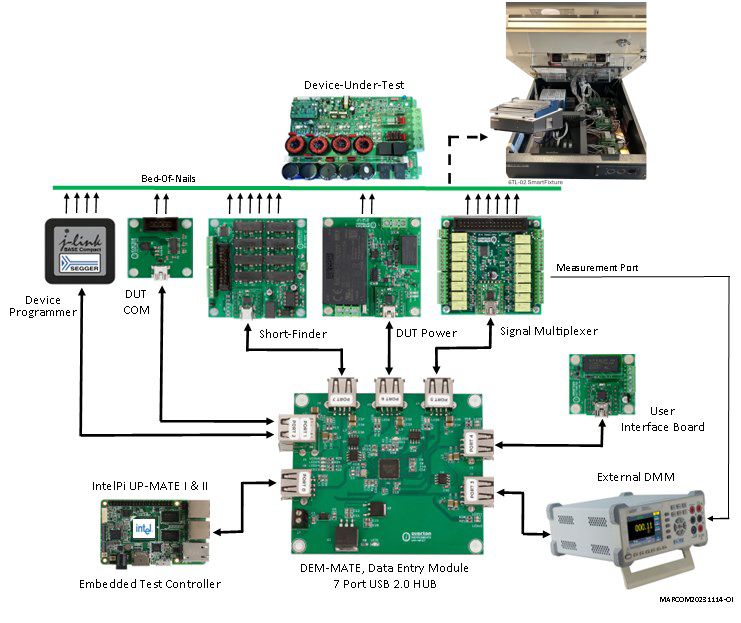

The FID-MATE (or Fixture Identification Module), is a unique solution that is designed to accommodate several standard test fixture support functions. First, a typical test fixture often requires the need to detect DUT_Present & Fixture_Ready status bits. The DUT_Present signal indicates the DUT is properly installed on the bed-of-nails platform, and second, the Fixture_Ready signal indicates the over-clamp assembly is active & engaged. The FID-MATE includes 8 digital I/O lines (4 inputs & 4 outputs). The 4 inputs are used to monitor the DUT_Present & Fixture_Ready signal lines (and the remaining 2 inputs can be used to support Start/Stop switches or an EPO Switch). The 4 outputs can be used to drive front-panel status LED’s (i.e., Pass/Fail indicators, or general-purpose logic control signals).
Part              # Name
SBS-1260-00Â Â Â Â Â Â FID-MATE(MM), with USB interface
SBS-1261-00Â Â Â Â Â Â FID-MATE(MM), with OI-BUS interface
